China Top Folding Outdoor Table Tennis Table Supplier?

Choosing a China top Folding Outdoor Table Tennis Table supplier requires more than comparing factory prices. Outdoor play is demanding. Sunlight fades weak finishes, rain reaches tiny joints, and uneven patios expose poor frame design.

Dr. Ian Marshall, an experienced table tennis equipment commentator and former ITTF publications manager, has observed, “A table is not merely a surface; it shapes the quality of practice.” This view matters when evaluating a Folding Outdoor Table Tennis Table for schools, clubs, hotels, parks, or home gardens. A reliable supplier should explain the tabletop thickness, coating technology, frame material, wheel construction, locking system, and weather-resistance testing. Details matter.

Look closely.

A strong table should fold smoothly without sudden movement. Its wheels should roll across concrete without wobbling. The playing surface should remain consistent, even after repeated outdoor exposure. Rust-resistant steel, UV protection, drainage-friendly design, and secure storage features deserve careful attention. Independent inspection records, production photos, product samples, and clear warranty terms can also reveal a supplier’s real capability.

However, no supplier is perfect. A thick tabletop may improve bounce but increase shipping weight. A lighter frame may simplify movement but reduce stability in wind. These trade-offs require honest discussion, not polished promises. Buyers should request sample testing and confirm available replacement parts before placing a large order.

This article explores how to identify a dependable Chinese manufacturer, assess product quality, and select a Folding Outdoor Table Tennis Table that performs beyond the showroom. The cheapest option may not stay economical after one wet season.

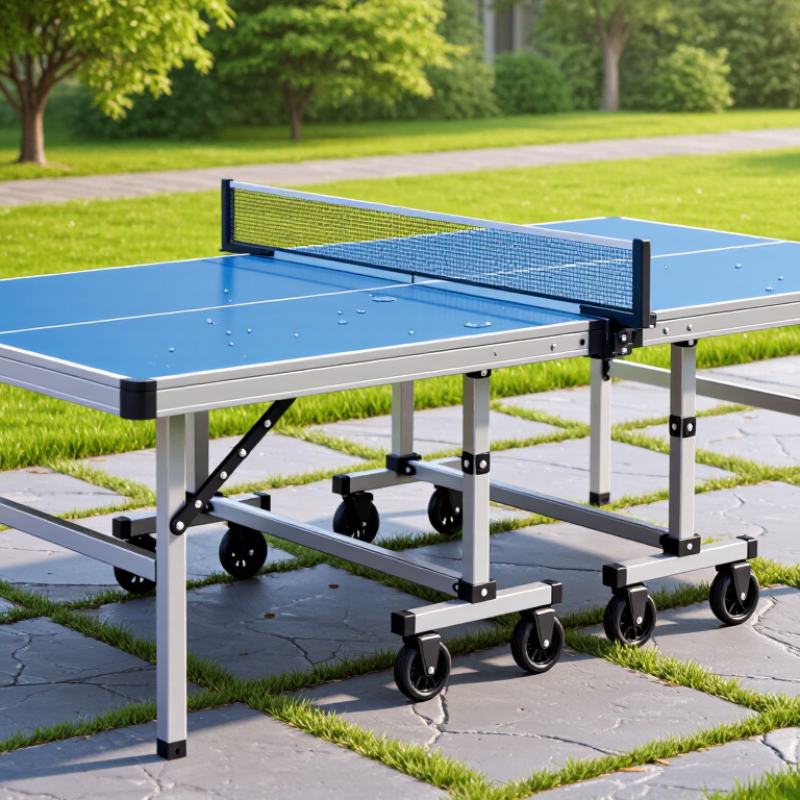

China Top Folding Outdoor Table Tennis Table Supplier?

What Defines a Top Folding Outdoor Table Tennis Table Supplier in China?

A top folding outdoor table tennis table supplier in China offers more than a low factory price. It demonstrates practical experience with outdoor sports equipment, stable production systems, and clear quality records. Buyers should ask for material specifications, inspection reports, and recent production samples. Real experience matters.

The table should use weather-resistant playing surfaces, rust-protected frames, durable wheels, and secure folding locks. Uneven courts expose weak designs quickly. A dependable supplier tests rebound, surface flatness, wheel movement, and locking strength before shipment. It should also explain how the table handles sunlight, rain, humidity, and seasonal temperature changes. Small details matter, especially drainage holes and edge protection. Ask for photographs from the factory floor, not only polished catalog images.

Reliable suppliers communicate clearly about dimensions, packaging, delivery schedules, replacement parts, and warranty support. They should provide sample approval before mass production and accept reasonable third-party inspections. This process reduces surprises for schools, clubs, hotels, and home users. Yet no supplier is perfect. A rushed inspection can miss a loose hinge or minor coating flaw. Experienced buyers should keep written standards and test one assembled table before ordering heavily. Honest suppliers welcome useful criticism, although communication may still require patience across languages and time zones. That is a practical weakness worth planning for.

China Top Folding Outdoor Table Tennis Table Supplier? What Defines a Top Supplier?

A reliable supplier should consistently manufacture folding outdoor tables that meet internationally recognized playing dimensions while providing weather-resistant materials, safe folding mechanisms, stable quality control, and dependable export support.

The reference dimensions follow the International Table Tennis Federation specification: table length 274 cm, width 152.5 cm, height 76 cm, and net height 15.25 cm. For outdoor purchasing, these measurements should be combined with UV-resistant surfaces, corrosion-resistant frames, secure locking systems, and documented quality inspections.

Core Features of High-Quality Folding Outdoor Table Tennis Tables

China Top Folding Outdoor Table Tennis Table Supplier?

High-quality folding outdoor table tennis tables need more than a bright surface. The playing top should resist sunlight, light rain, and temperature changes. A weather-resistant coating helps prevent fading and swelling. The surface must also deliver a consistent bounce. Test several areas, not only the center. Small differences can affect training quality.

A strong steel frame improves stability during fast rallies. Wide support legs reduce movement on concrete or grass. Reliable safety locks should hold each folded panel firmly. Smooth transport wheels make setup easier, especially for schools and community courts. Check the wheel housing for cracks and loose screws. These details often reveal manufacturing quality. A dependable supplier should provide material specifications, folding tests, and clear maintenance guidance. Ask for inspection records when possible. Even excellent tables have limits. Outdoor storage still needs protection.

Tips: Choose a table with independent locking systems on both halves. Keep the surface covered when unused. Dry standing water quickly. Inspect hinges and bolts every few weeks. I would also test the table after delivery, because shipping can loosen fittings. Do not judge quality from appearance alone. A perfect finish may hide a weak frame. Reliable suppliers welcome practical questions and explain their quality controls clearly.

Materials and Manufacturing Processes Used by Chinese Suppliers

China Top Folding Outdoor Table Tennis Table Supplier?

Chinese suppliers commonly build outdoor folding table tennis tables with weather-resistant materials. The playing surface often uses aluminum-plastic panels or resin-treated boards. These materials resist moisture better than untreated wood. A steel undercarriage adds rigidity, while powder coating helps protect against rust. The coating quality matters around hinges and drilled holes.

In factory inspections, I check panel flatness, frame welds, wheel strength, and locking mechanisms. Small gaps can affect ball bounce. Uneven folding joints may also create safety concerns during storage. Suppliers usually cut panels with CNC equipment, weld frames with jigs, and assemble tables through staged quality checks. Random bounce testing gives useful evidence, but one test is not enough.

Details matter. Some manufacturers use thicker steel but weaker wheels. Others offer smooth surfaces but inconsistent edge sealing. This is where buyers need production records, material specifications, and sample testing. A reliable supplier should explain its tolerance standards without avoiding difficult questions. I would also inspect several units from different batches. Not every batch behaves alike. That limitation deserves attention, especially for large orders and outdoor use.

Quality Standards, Safety Testing, and Product Certification

China Top Folding Outdoor Table Tennis Table Supplier?

A reliable supplier treats certification as a working process, not a decorative file. Outdoor tables need tested frames, locking systems, wheels, and playing surfaces. The surface should resist ultraviolet exposure, moisture, and repeated folding. During practical factory checks, inspectors should examine welds, sharp edges, hinge gaps, and wheel brakes. Small defects can create real injury risks.

Safety testing should include stability tests with the table opened and folded. The locking mechanism must hold firmly during movement. A useful inspection also checks whether one person can release the table without trapped fingers. It is not enough to test one sample. Production batches can vary. Random inspections provide stronger evidence, especially after material or supplier changes.

Product certification must match the destination market. A quality management certificate may support factory control, but it does not automatically certify the table itself. Buyers should request current test reports, material declarations, and traceable production records. Standards for sports equipment, chemical content, and electrical parts may differ by region. Ask for laboratory accreditation.

Some paperwork can look perfect and still miss field problems. That deserves attention. A responsible supplier should accept independent testing and explain failed results clearly. Clear records, serial references, and corrective actions make certification more credible. The best assessment combines documents with hands-on inspection.

China Top Folding Outdoor Table Tennis Table Supplier? - Quality Standards, Safety Testing, and Product Certification

Evaluation Dimension Recommended Requirement or Benchmark Relevant Standard, Test, or Regulation Verification Evidence to Request Procurement Importance
Playing Surface Dimensions For competition-size equipment, approximately 2,740 mm long, 1,525 mm wide, and 760 mm high. Recreational outdoor models may use different dimensions. International Table Tennis Federation equipment regulations; EN 14468-1 may be used for table performance and safety assessment. Approved technical drawing, dimensional inspection report, and finished-product measurement records. High
Surface Flatness and Bounce A competition-style table should provide a consistent bounce. ITTF regulations specify a bounce of approximately 230–260 mm when a standard ball is dropped from 300 mm onto the playing surface. ITTF equipment regulations and applicable table-tennis test methods under EN 14468-1. Bounce-test results at multiple points, flatness inspection, and surface uniformity records. High
Surface Coating and Glare Control The playing surface should be dark, uniform, smooth, and low-glare. Outdoor coatings should resist moisture, ultraviolet exposure, and normal abrasion. ITTF surface requirements for competition-style tables; supplier-defined coating and weathering test procedures for outdoor use. Coating specification, color and gloss records, adhesion testing, UV-aging results, and water-resistance test data. High
Frame and Undercarriage Strength The frame, support rails, legs, hinges, and wheel assemblies should withstand repeated folding, transport, installation, and normal playing loads without permanent deformation. EN 14468-1 functional and safety requirements; supplier endurance and load-test procedures. Static-load report, fatigue-cycle records, weld inspection results, and production quality-control records. High
Folding and Locking Mechanism Each half should lock securely in both the playing and storage positions. The mechanism should prevent unintended folding or opening during handling. Applicable safety requirements in EN 14468-1; general product safety and mechanical hazard assessment. Lock-engagement inspection, repeated-cycle test, anti-collapse test, and user instructions. Critical
Pinch, Crush, and Shear Protection Moving parts should minimize accessible pinch and shear points during folding, unfolding, rolling, and height adjustment. Warning labels should be supplied where residual risks remain. Mechanical safety assessment under EN 14468-1 and applicable consumer-product safety requirements. Hazard analysis, visual inspection, safety-function test, warning-label artwork, and instruction manual. Critical
Stability and Tip Resistance The table should remain stable on a level surface, with reliable leg braces, wheel brakes, and locking devices. Outdoor use should account for uneven surfaces and wind exposure. EN 14468-1 stability and safety requirements; additional site-specific risk assessment may be needed for permanent outdoor installation. Stability test report, brake-function inspection, leg-lock verification, and installation guidance. Critical
Edges, Corners, and Fasteners Exposed edges should be rounded or protected. Fasteners should be secure, corrosion-resistant where exposed, and free from sharp projections. General mechanical safety requirements and applicable product-safety testing procedures. Sharp-edge inspection, torque records, fastener specification, and final visual inspection report. High
Corrosion Resistance Metal components intended for outdoor use should have suitable galvanization, powder coating, stainless-steel treatment, or another documented corrosion-protection system. ISO 9227 salt-spray testing may be used to evaluate corrosion resistance; test duration should be agreed according to the coating system and intended environment. Material certificates, coating thickness records, ISO 9227 test report where specified, and corrosion inspection criteria. High
Water and UV Durability The panel core, edge banding, coating, and labels should be selected for outdoor moisture and sunlight exposure. Outdoor storage instructions should clearly state limitations. Supplier-defined accelerated weathering and water-resistance methods; ISO 4892-3 may be considered for fluorescent UV exposure testing. Material data sheets, water-absorption results, UV-aging report, and outdoor-use maintenance instructions. High
Net Assembly The net should be securely attached, correctly aligned, adjustable where specified, and sufficiently durable for repeated outdoor use. ITTF net requirements for competition-style equipment; EN 14468 series where applicable. Net dimension record, attachment inspection, tension test, and replacement-part specification. Medium to High
Material Chemical Compliance Paints, plastics, adhesives, metals, and packaging should comply with the chemical restrictions of the destination market. EU REACH requirements; RoHS may apply to electrical or electronic components; destination-specific chemical laws must be checked separately. Supplier declaration, material composition, laboratory test reports, and restricted-substance declarations. Critical for regulated markets
Product Safety Certification Certification should match the destination market and the exact model. A general factory certificate should not be treated as proof that every table model is certified. EN 14468-1 test assessment; applicable national or regional product-safety requirements. CE marking is only required when the product falls under legislation that requires it. Model-specific test report, declaration of conformity where applicable, certification scope, issuing laboratory, and report date. Critical
Factory Quality Management A documented quality system should control incoming materials, in-process assembly, coating, functional testing, final inspection, and corrective actions. ISO 9001 certification is evidence of a quality-management system, not a product-performance certification. Valid ISO 9001 certificate, audit scope, inspection plan, sampling standard, and recent corrective-action records. High
Folding-Cycle Durability The supplier should define a repeatable folding and unfolding cycle target based on the product design and provide acceptance criteria for hinges, locks, wheels, and cables. Supplier endurance protocol aligned with the functional and safety objectives of EN 14468-1. Cycle-test count, pre-test and post-test inspection, failure limits, and sample identification. High
Packaging and Transport Protection Packaging should protect corners, playing surfaces, wheels, locks, and coated metal parts against impact, moisture, abrasion, and container movement. ISTA transport-test procedures may be selected according to packaging type, shipping method, and distribution risk. Packaging specification, drop or vibration test report, carton markings, palletization plan, and loading photos. Medium to High
Instructions, Labels, and Spare Parts Instructions should cover assembly, safe folding, locking, wheel-brake use, storage, weather limitations, maintenance, and replacement parts. Applicable consumer-product labeling and user-information requirements in the destination market. Final multilingual manual, warning-label artwork, parts list, warranty terms, and after-sales response procedure. High

Note: Standards, regulations, and certification requirements depend on the destination market, product configuration, and intended use. The latest applicable edition and the exact model scope should be confirmed before purchase.

How to Evaluate and Choose the Right Chinese Supplier

China Top Folding Outdoor Table Tennis Table Supplier?

Choosing a Chinese supplier requires more than comparing prices on a catalog. Ask for a detailed sample and inspect its folding action, wheel locks, frame joints, and net posts. The tabletop should resist moisture, while the underside needs strong support against warping. A useful sample test includes outdoor exposure, repeated folding, and several hours of play. Small weaknesses become obvious then.

Request factory photos, production videos, quality-control records, and recent export references. A reliable supplier should explain material thickness, paint treatment, packaging, spare parts, and inspection procedures clearly. Check whether the supplier can provide appropriate product documentation for your target market. Confirm lead times in writing, including sample approval and peak-season delays. Communication matters. Slow or vague replies often create expensive surprises later.

“ Do not trust polished images alone. I once underestimated the importance of carton protection, and a well-made table arrived with scratched corners. That mistake changed my inspection checklist. Ask for drop-test details and photos of packed units before shipment. Compare at least three suppliers using the same questions and specifications. A lower quotation may hide thinner steel, weaker hinges, or limited after-sales support. Even a promising supplier may need closer monitoring during the first production run. That is not distrust; it is practical risk control.
